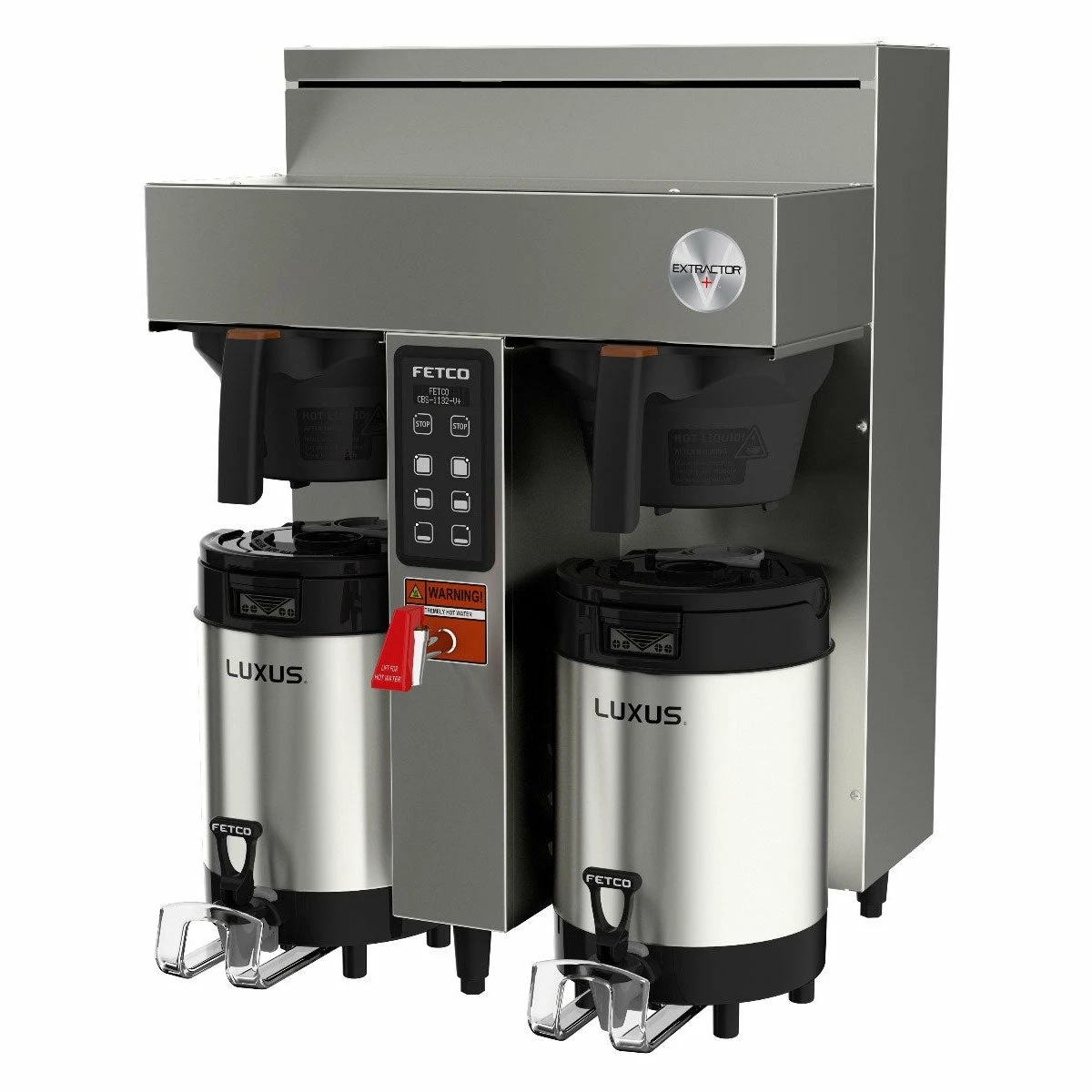

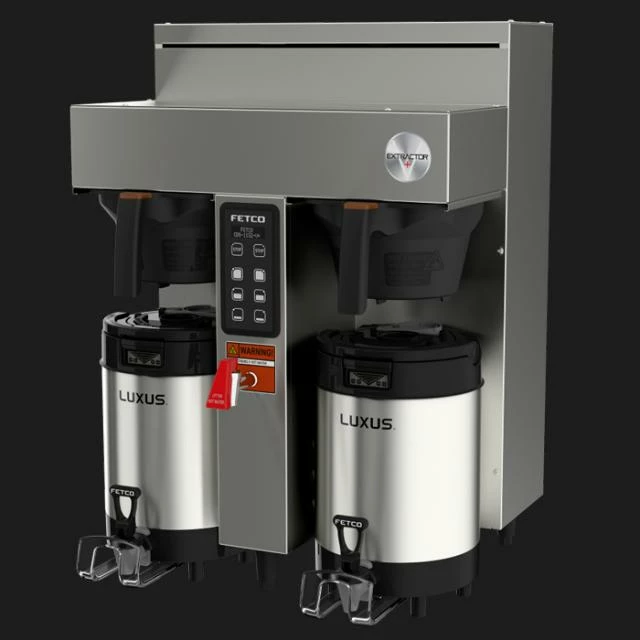

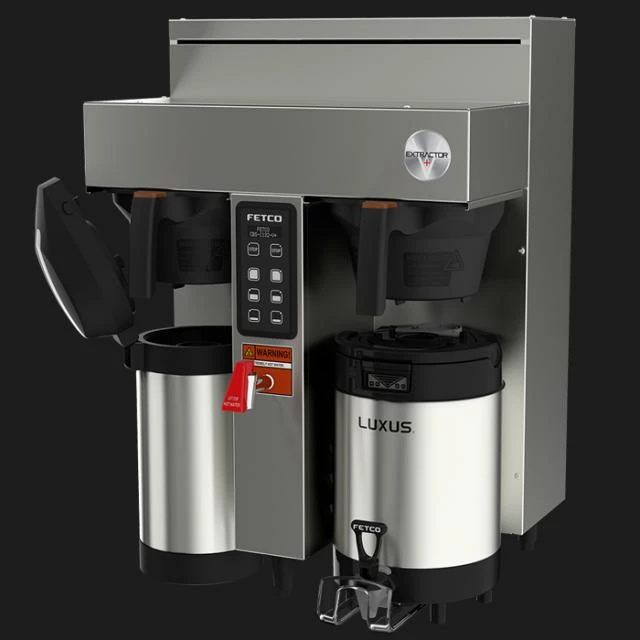

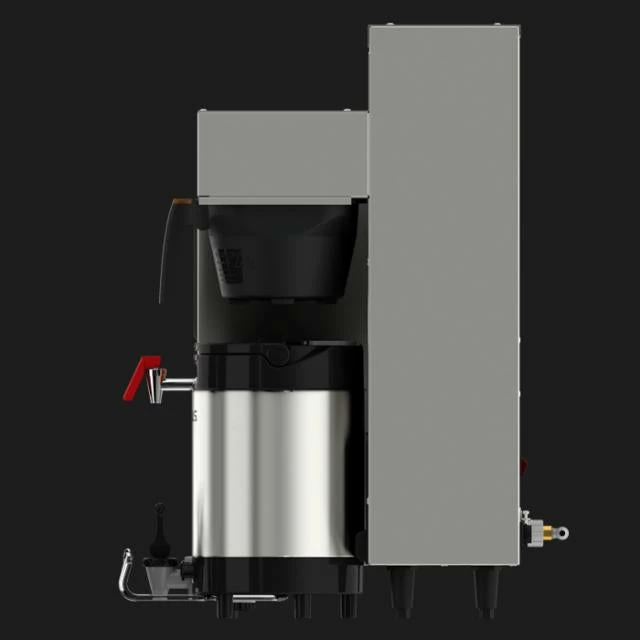

Fetco CBS-1132 V+ Twin Station Coffee Brewer – 220V

The twin station 1.0G Extractor CBS-1132-V+ Series Coffee Brewer is a perfect hot beverage solution for low-to-medium volume self-service environments such as convenience stores, cafeterias, specialty coffee shops, or office coffee service (OCS). Designed specifically for smaller batch brewing, these high-quality brewers possess many of the legendary features and reliable performance you’ve come to expect from Extractor branded products at a competitive price.

CBS-1132 V+ 1.0 Gallon Coffee Brewer Features

This brewer features a cascading spray dome (CSD). Water flows over the dome’s outer surface instead of through tiny drain holes that easily can become clogged with minerals and scale over time. The CSD virtually eliminates spray head lime buildup – a leading reason for service calls. This brewer’s low profile and small footprint make it the perfect choice for areas in which service space is at a premium – breakrooms, cafeteria countertops, lobby coffee service, etc.

• Metal brew basket.
• Extractor V+ control panel so you can control all brew functions and diagnostic tools with a user-friendly digital touchpad. The screen prominently displays messages, numbers, and symbols as you interact with the software.
• Programmable extractor controls to produce precise volumes of coffee.
• Manual hot water faucet safely dispenses how water away from steam and brew basket.
• Cascading spray dome flows over clog-free channels to eliminate spray head scale buildup.
• Small footprint for tight spaces.
• Compatible parts with the XTS series to save on storage space.
• Manufactured in the U.S.A.

Compatible with the L4S-10 Luxus thermal dispenser (sold separately). This version comes with a metal brew basket – not displayed.

About the Brand

Fetco is a well-trusted brand when it comes to coffee and tea brewing equipment and they have over 30 years of experience. Fetco was started in 1987 when the owners saw a need for quality, dependable equipment. What sets them apart is their continuous delivery of innovative and progressive coffee brewing equipment which has been helping cafés advance their business and deliver quality service and products to customers. They’re headquartered in Lake Zurich, Illinois where they manufacture all products in-house. As coffee experts ourselves, we’ve learned over the years that this is an important benefit since it allows for faster and better innovations as well as the ability to quickly react to market needs and equipment modifications. Add Fetco to your food service today!

Split

CAPACITY
Tank Capacity	3.5 gal/14.8 L
8 oz	236 ml cup/hr: 224
12 oz	355 ml cup/hr: 149
16 oz	473 ml cup/hr: 112
20 oz	591 ml cup/hr: 90
ELECTRICAL
Configuration	Terminal Block
Volts	220
kW	4.7; heater configuration 2 x 2.3 kW
Amp Draw	19.7
Phase	Single
Wires	2+G
WATER SPECS
Water Inlet Size	3/8″ (male flare)
Min. Flow Rate	2 gpm
Water Pressure Req.	20-75 psig
DIMENSIONS
Height	27 3/4″ (70.5 cm)
Width	11 3/4″ (29.9 cm)
Depth	20 1/2″ (52.1 cm)
Empty Weight	47 lbs (21.3 kg)
Filled Weight	92 lbs (41.7 kg)
Combined Filled Weight	115 lbs (51.9 kg) brewer + 2 filled dispensers
Hot Water Tank Capacity	6.4 gal (24.0 l)
MPN	E113251M
